RCR-Force® 12
RCR-Force® 12
$1,078.00
Orders ship within 1-2 business days
Ships from Rancho Santa Margarita, CA

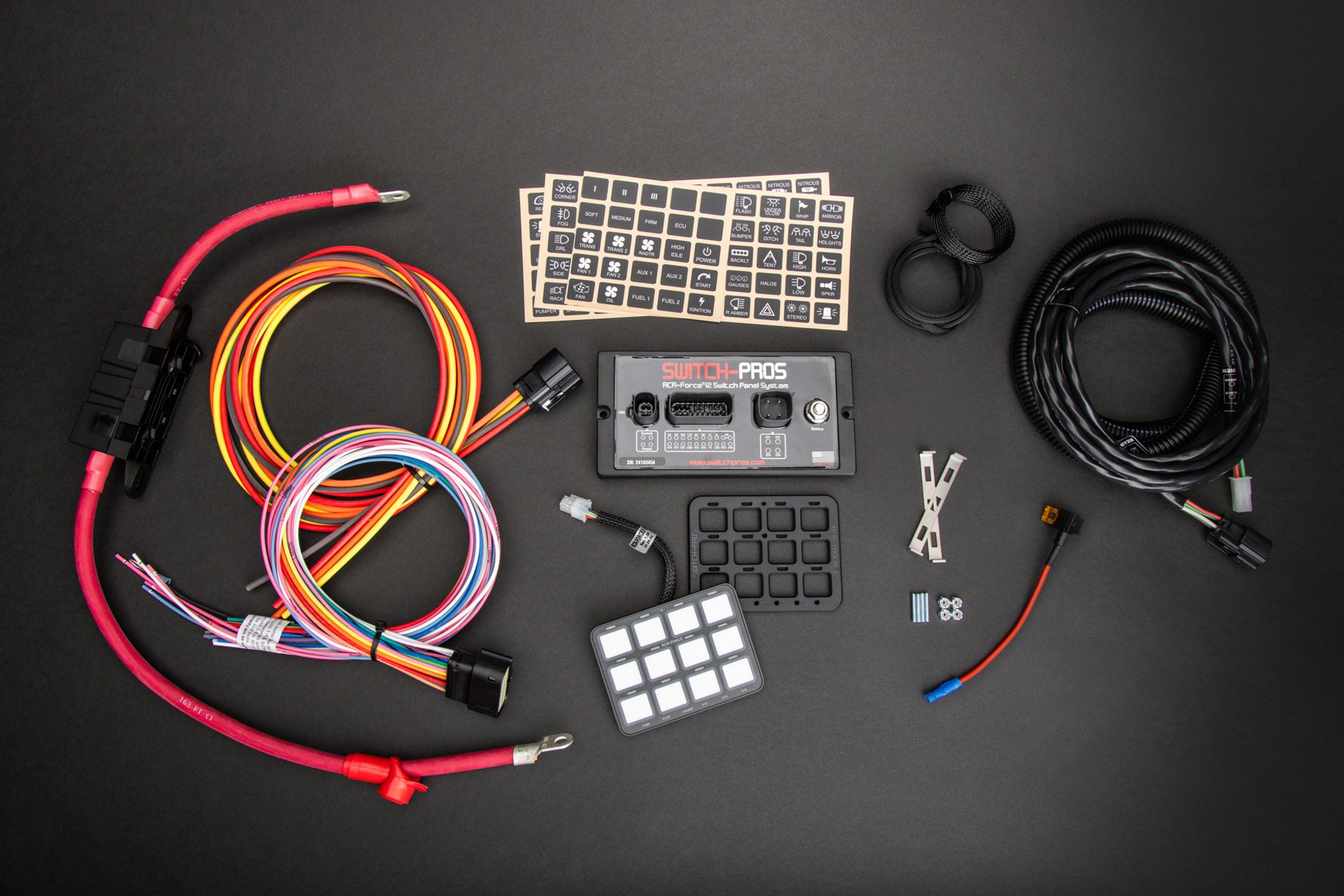

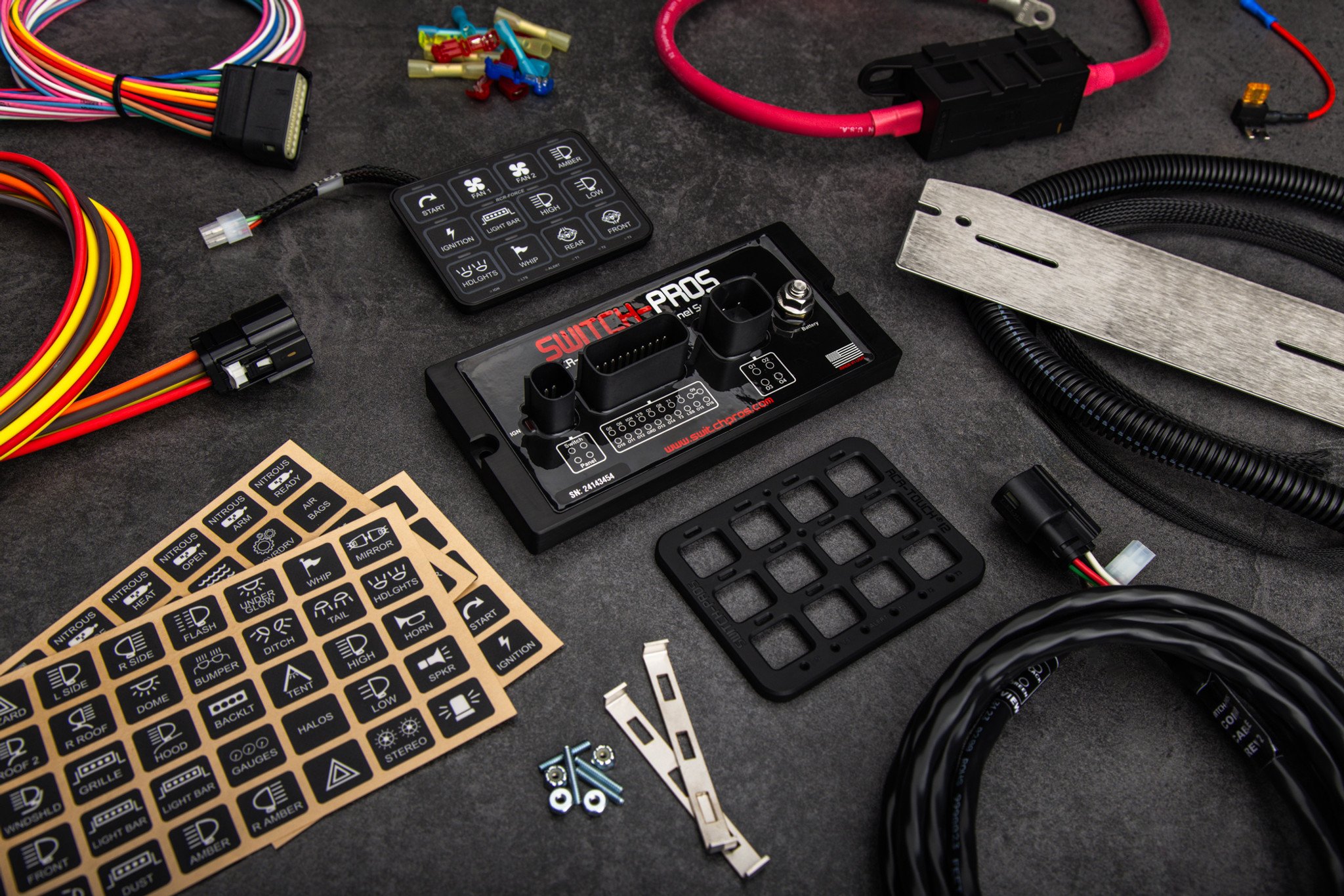

What’s Included?
Switch Panel and Power Module

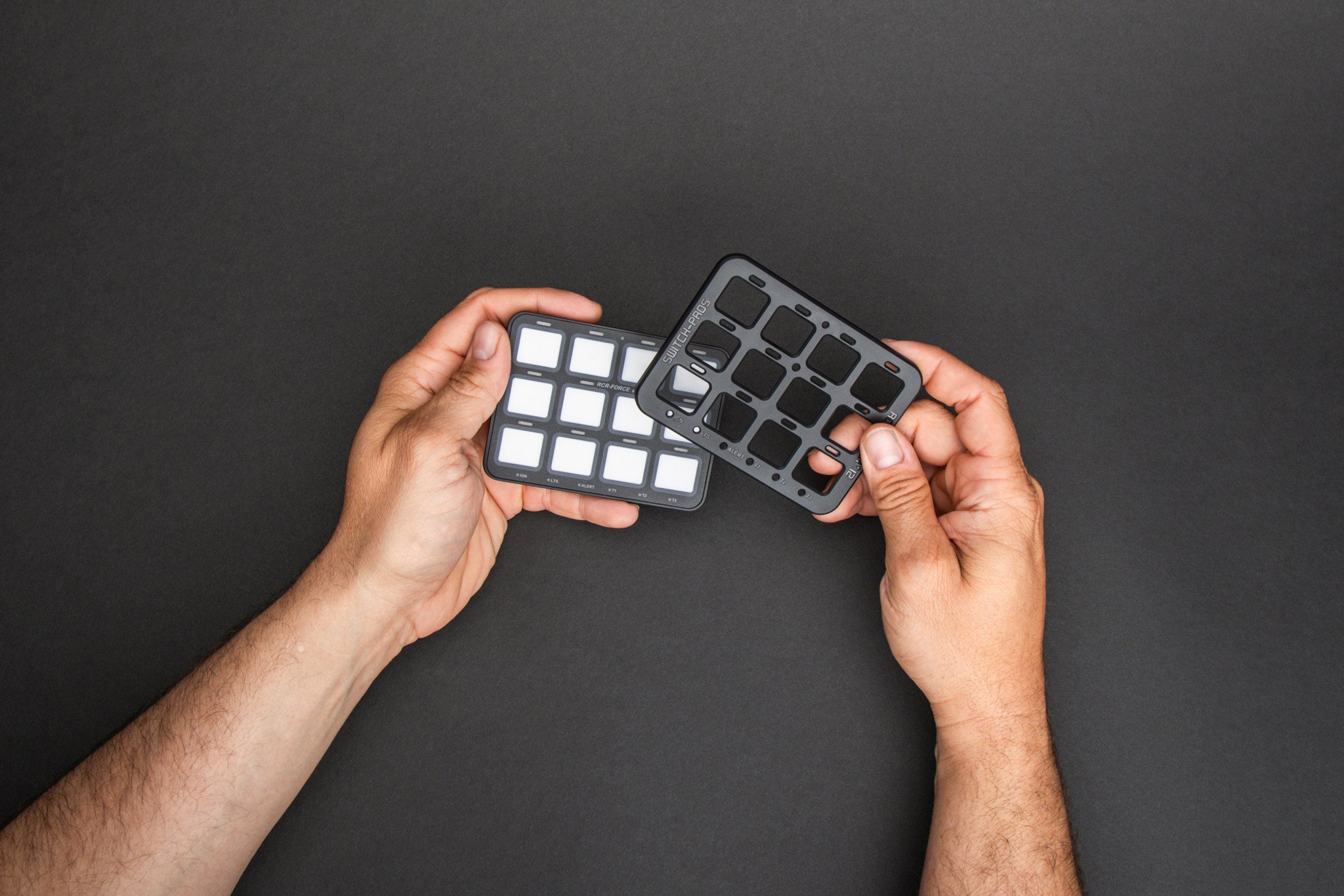

RCR-Touch® cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain (United States Design Patent No. US D922,969 S)
11’ of Communication Cable between Switch Panel and Power Module
Power Cable with 150A inline fuse
125 User Selectable Legends included (Horizontal orientation)
Installation brackets and hardware
20-pin color coded output harness
4-pin color coded high inrush output harness
Detailed installation Guide
Features
RGB Backlighting
Built-in Bluetooth module for use with free Switch-Pros App
Program and operate your panel from any device with access to the iOs or Google Play Store
Battery Voltage Readout on App screen
Orange LED switch indicators
6 Programmable LED Status indicators
Specifications
150amp capacity with 17 outputs
4 rated @ 35A and 1 rated @ 30A (High In-Rush circuits)
11 rated @ 15A, which can be combined for larger loads
1 Low Side driver switch, rated @ 2A
Adjustable Output Overcurrent Values
Switch Panel enclosure measures 4” L x 3” W x .375” H (United States Design Patent No. US D914,614 S)

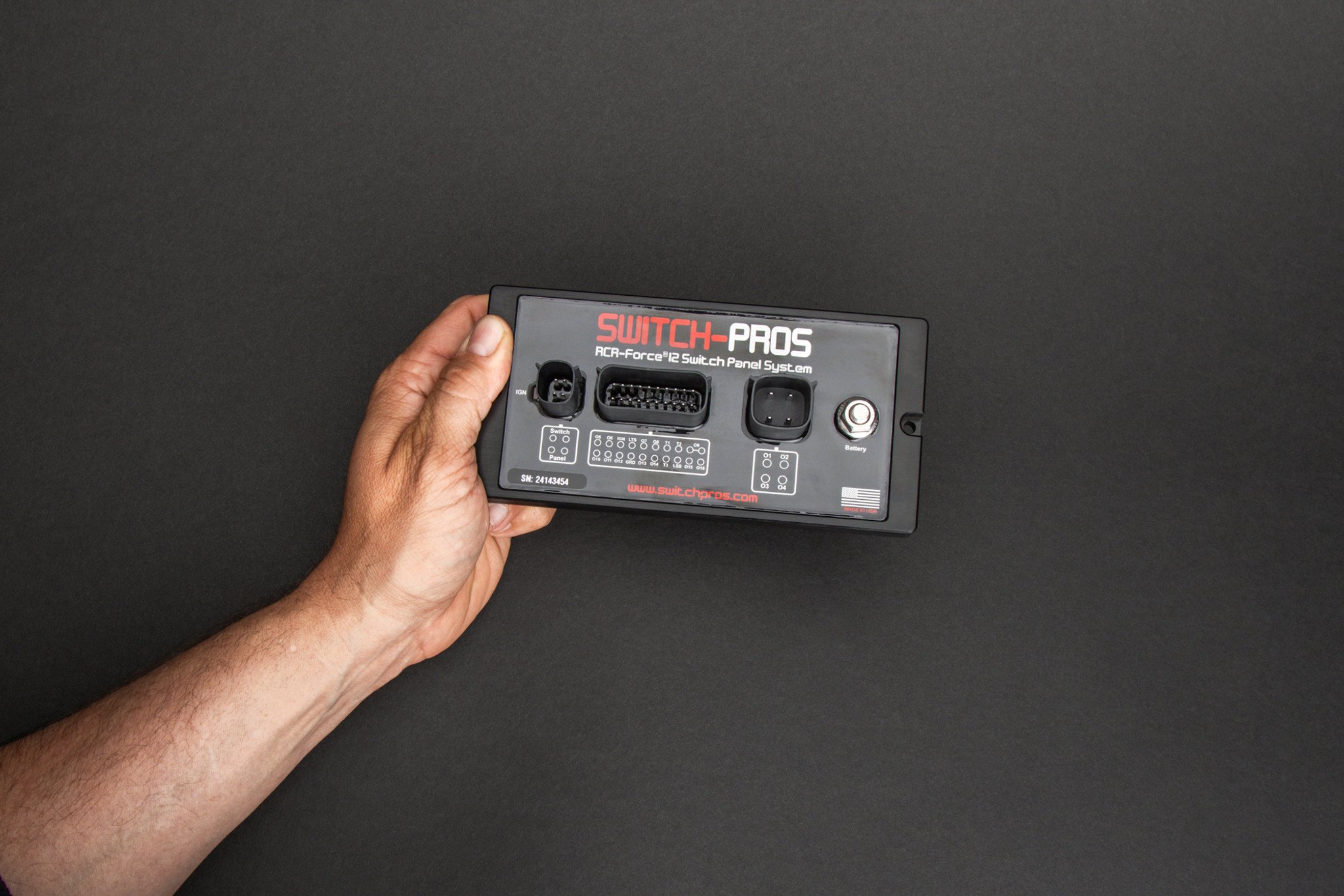

Power Module Measures 7”L x 3.5”W x .5”H (excluding connectors)
Power Module Under Hood rating 125°C to -40°C
Switch Panel and Power Module Waterproof rating of IP67
Programming & Other Features
Preset Dimming function WITH MEMORY (100% to 10% brightness)
Master Mode, with ability to turn up to 11 other switches On AND Off with one touch
On-On-Off logic
Touch Panel lockout
On/Off or Momentary
Ignition or Battery Input
Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
Automatic Power-Up upon vehicle start up
Safety Lockout for specific switches
Time Delay off
No bulky relay box
Up to 4 output wires can be assigned to 1 switch
Three External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
Low Voltage Disconnect
Sleep Mode for minimal power consumption
Daisy Chain up to 3 Switch Panels to One Power Module
Proudly made in the USA!
